Rear End Narrowing

Rear End Narrowing

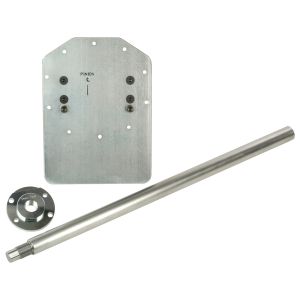

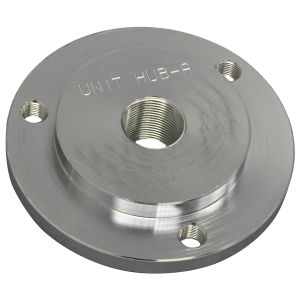

Universal Narrowing Jig - Includes a selection of CNC-machined adapters that bolt in place of the factory carrier bearings to assure proper alignment of the jig shaft and threaded housing-end adapters. Carrier-bearing adapters are included for Ford 9� and 8.8", Dana 60, Chevy 12-bolt, Mopar 8-3/4� and early Olds rearends. Housing-end adapters are included for Mopar, early Olds, big-Ford, Mustang (8" and 9"), Camaro and Impala rearends, with a special tapered adapter also included to align the axle tube. The adapters bolt onto the housing ends for easier rotational alignment, and then thread over the jig shaft to form an extremely stable fixture.

Floater Housing-Spindle Adapter - Available separately to install a Strange 40-spline floater spindle.

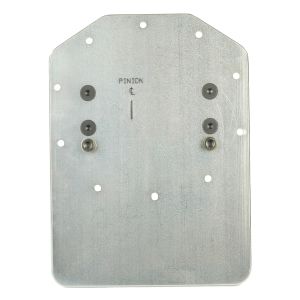

Pinion Center-Line Gauge - An important tool used when narrowing rearends. Makes measuring a housing much easier by accurately locating the pinion center line of any popular rearend.
