Roll Cage

Roll Cage Worksheet

Worksheet can be completed using the form below or downloaded for printed use.

MEASUREMENT HALF-CIRCLES:

Cut a 13-5/8" diameter circle out of cardboard, then cut it in half. You will need both halves for measuring the vehicle.
Mark the center-point of each half-circle's radius. This is measurment point when taking dimensions from the vehicle.
When measuring, place the outside of the half-circles against the interior of the vehicle. This is the outside of each bend.

Section 1 - Main Hoop Measurements (in inches)

A - Center to center at headliner:

B - Passenger side headliner to door top:

C - Door top driver to passenger:

D - Passenger door top to floor:

E - Floor driver to passenger:

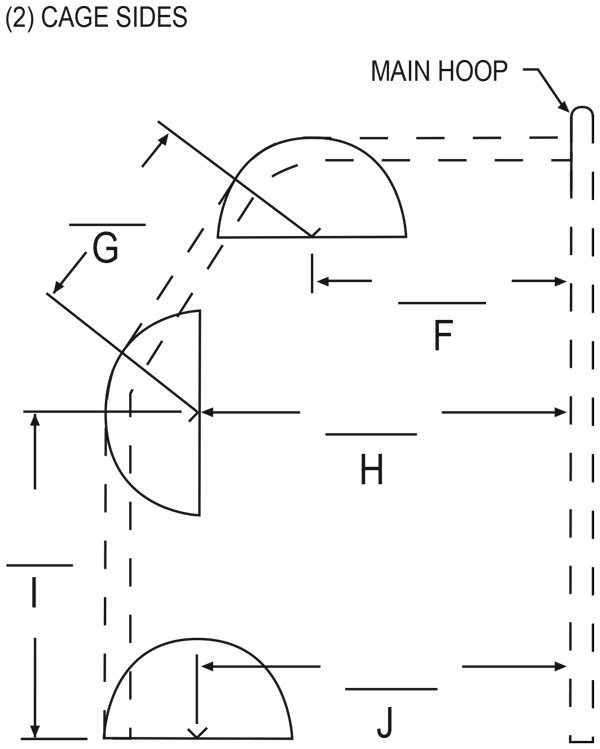

Section 2 - Cage Sides Measurements (Driver Side, in inches)

F - Windshield top to main hoop:

G - Windshield top to dash (min 14"):

H - Dash to main hoop:

I - Dash to floor:

J - Floor to main hoop:

Section 3 - Width of Cage Sides Viewed From Front (in inches)

K - Outside width at windshield top:

L - Outside width at second bend (dash):

M - Outside width at floor:

Customer and Vehicle Information

Customer Name:

Car Year/Model:

After printing to PDF, please email the completed worksheet to: sales@cachassisworks.com
